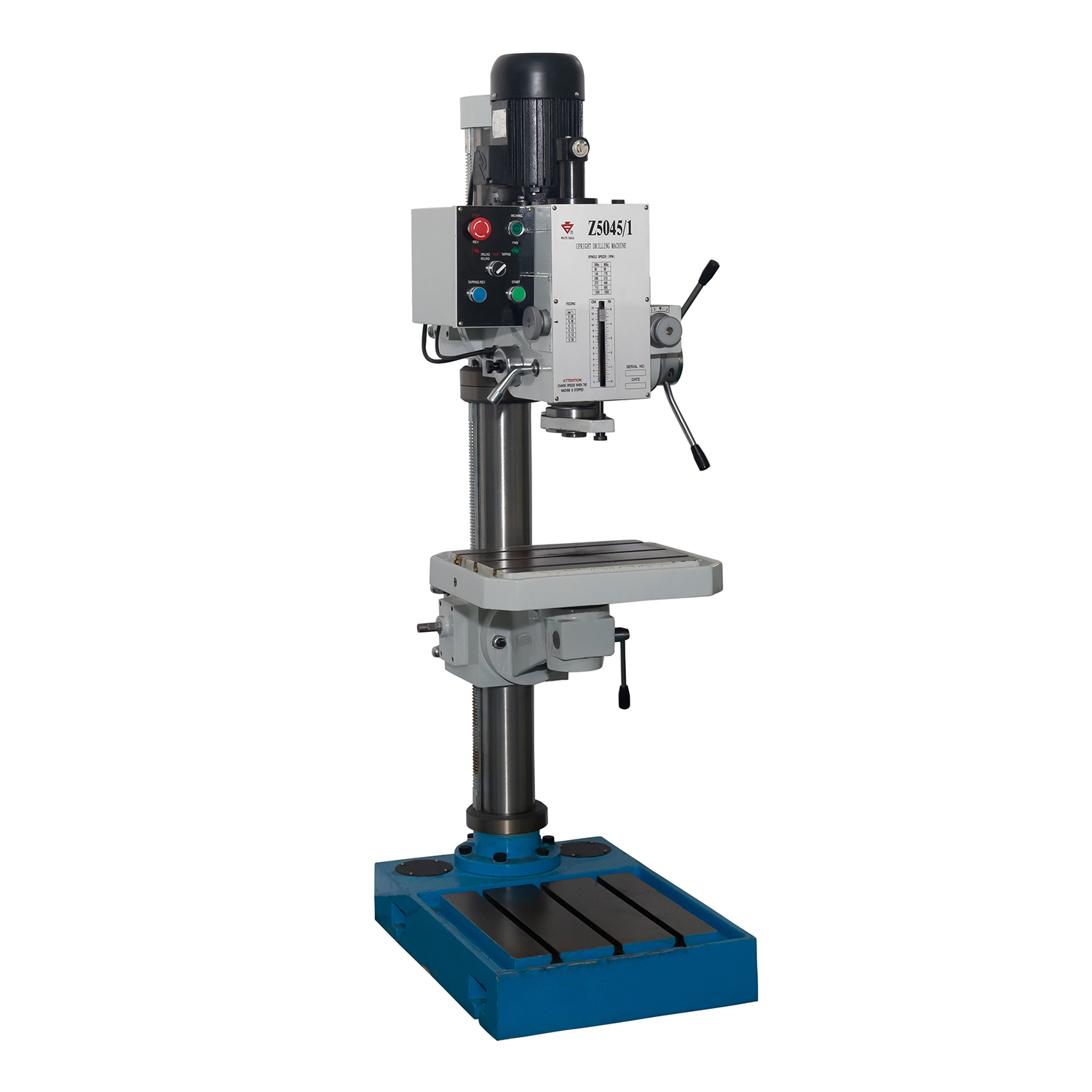

VERTICAL DRILLING MACHINE Z5032/1 Z5040/1 Z5045/1

FEATURES: * Vertical milling head can be moved forward or backword; *Vertical milling head can swivel ±90° vertically and ±360° horizontally; *Adjustable stops n table; *Manual quill feed; *High tensile casting iron elevative table; *Double motor with powerful force. 　　　　　　　　

FEATURES: *Drilling, milling and tapping; *Spindle speed step-changed cyclically, spindle auto-feeding and cyclic change of feeding speed; *Head swivels 360° horizontally; * Headstock and worktable up&down perpendicularly; *Super highcolumn; *Precision micro feed; *Positive spindle lock; *Distinct auto device for releasing tools,operating very easilly; *Gear driven,lower noise. STANDARD ACCS.: *Wedge *Tie rod *Washer OPTIONAL ACCS.: * Double speed motor; *Bench vice 90mm,125mm,160mm; *Milling holder *Drill chuck and arbor; *Milling chuck(8pcs) *Heightened column' *Coolant system; *Working lamp; *Auto-tapping system; *Boring bar; *Clamping kits(58pcs)

FEATURES: *Use strong casting steel. X/Y/Z axes are with rectangular guide ways, medium frequency quenching and precisely grinding; *Guide-ways are with plastic sticker, and be precisely scrapped; *Original high speed and high precision TAIWAN spindle; *Whole machine be equipped with imported P4 bearing; *Coolant system equipped with pump of large flow and high lift pump to ensure cooling under high-speed cutting. Standard Accs.: *FANUC control system *Arm-type ATC *Automatic lubricating system; *Spindle blowing device *Guide-way telescopic cover *Movable hand-wheel *Hand-held air-gun *Alarm light *Coolant system *Working light *RA232 interface *Level adjusting screws and block *Tool-box and operating manuals Optional Accs.: *Spindle oil-cooling *Rear flushing *The 4th axis rotary table *Chip conveyor *Spindle centre water *Electric-box refrigerator

FEATURES: *Gear-driven and square column; *Milling, drilling,tapping,boring and reaming; *Head swivels 90 verticaly; *Micro feed precision; *Adjustable gibs on table precision; *Strong rigidity,powerful cutting and precisely positioning; STANDARD ACCS.: * Allen wrench, * Wedge *Wrenches, *Drill chuck arbor, *Screw, *Draw bar and washers. OPTIONAL ACCS.: *Machine stand and chip tray *Workng lamp; *Coolant system; * Drill chuck; *Milling cutter holder; *Mill chuck; *Power feed attachment; *Auto-tapping system; *Parallel vice; *Clamping kits(58pcs); *Rotary table *DRO/XY axis, DRO/XYZ axis

FEARURES: *4pcs Tool stations on worktable with high efficiency. can finish all process of surface machining, hole machining and tapping by clamping workpiece; *High and low step speeds available and stronger torque for low step speed; *3 axis transmission by precision ball leadscrew,servo motor driven; *Two styles of tool change avaiable, manually pneumatically. *Various famous CNC controllers supplied with for more choice; *Machine stand and machine body are designed separately for easy and flexiable installment by user. Standard Accs.: *Working lamp *Coolant system *Automatic lubricating system *Siemens controller system Optional Accs.: *GSK or FANUC control system *Tool-released and clamped pneumatically *Heightened column ( Z travel:50-550mm) *900*240mm worktable *160mm parallel vice *Tool holder *Iron casting machine stand *

FEATURES: *Specially design for mini-size parts machining; *With space occupied small,but very rigidity and precision marking; *High-speed and precisely spindle unit with servo motor driven; *X,Y,Z linear guideway, servo driven; *Equipped with Cloak type ATC(10pcs) (except XK7124L) and concentrated all of functions as vertical machine center Standard Accs.: *Automatic lubricating system; *coolant system *Working lamp *Tool-released and clamped pneumatically *Siemens 808D system *Iron casting machine stand Optional Accs.: *Fanuc,GSK brand CNC control system *Heightened column for XK7124L/VMC24L (Z travel: 50-550mm) *900*240mm worktable *160mm parallel vise *Tool holder

FEATURES: *A kind of combination machines with turning,milling,drilling and threading; *Metric or Imperial thread cutting; *Suitable for processing metal,wood and other material; *Excellent advantage of various functions, small occupation and economlization; *Widely used in job-shops,car-shops,technical school,factories and family for machine parts repairing and making, education training,household utensils' making,etc. Standard Accs.: * Changing gears. *Tool-post wrench, *Double ends wrench, *Draw bar and washer, *Drill chuck arbor, *3-jaw chuck, *Screws, *Wedge, *Centre, *Allen wrench, Optional Accs.: *Machine stand *Follow rest *Steady rest *4-jaw chuck *Back plate for 4-jaw chuck *Reversible thread tapping tools *Lathe tools ( 5 pcs) *Drill chuck *Milling holder(4 tools) *Face plate *Protector of lead-screw(flexible) *Protector for tool-post *Protector for drill chuck *Protector for chuck *European quick change toolpost

FEATURES: *Supersonic frequency hardened bed ways; *Precision roller bearing for spindle; *High quality steel,ground and hardened gear inside headstock; * Easy and fast operating gearbox; *Enough strong power motor; *ASA D4 camlock spindle nose; *Various threads cutting functions available Standard Accs.: *3-jaw chuck, *Follow rest&Steady rest, *Screws, *Oil gun, *Centre & Centre sleeve, *Tool-box, *Tool-post wrench, *Double ends wrench, *Allen wrench; *Changing gears, Optional Accs.: *Machine stand, *Working lamp, *Cooling pump, *Foot brake, *Splash guard, *4-jaw chuck, *Face plate *Live centre *Quick change tool-post; *2-Axis DRO *Protector for chuck; *Protector for toolpost; *Protector for leadscrew;
